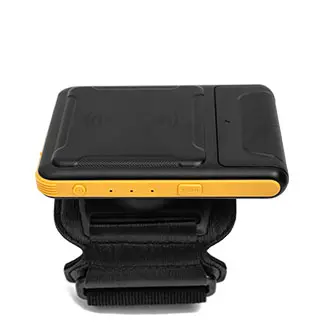

R5 Wearable UHF RFID Reader

R5 Wearable UHF RFID Reader

Bluetooth-Enabled UHF Wearable Reader with Removable Battery

Chainway R5 is a wearable UHF RFID reader with a 2,000 mAh removable battery, BLE 5.0, and support for Impinj-based CM710/CM2000 modules. It supports Android/iOS via SDK, and is ideal for hands-free scanning in warehouse, logistics, or asset management. :contentReference[oaicite:17]{index=17}

Features

  • Impinj-based UHF Module (E710 / R2000)
  • 2000 mAh Removable Battery
  • Bluetooth Low Energy 5.0
  • USB Type-C Connectivity
  • Wearable Design (Wrist / Arm / Magnetic Attach)

Functions

  • UHF Tag Read & Write
  • Hands-Free Tag Scanning
  • Mobile Phone / Tablet Pairing via BLE
  • Inventory / Asset Tracking
  • Real-Time Data Capture

Specifications

Physical Characteristics

Dimensions
108 × 78 × 18 mm
Weight
200 g
Battery
2000 mAh Removable

Communication

Bluetooth
BLE 5.0
USB
Type-C, data & charging

RFID

Chipset
CM710-1 (E710) / CM2000-1 (R2000)
Frequency
865-868 / 902-928 MHz
Protocol
EPC C1 GEN2 / ISO18000-6C
Output Power
Up to +30 dBm
Max Range (theoretical)
Up to ~14 m (lab, open)

Environmental

Operating Temp
-20 °C to +50 °C
Drop Resistance
1.2 m
Sealing
IP65

Support & Downloads

Accessories

  • Wrist Strap
  • Arm Strap
  • Type-C Cable
