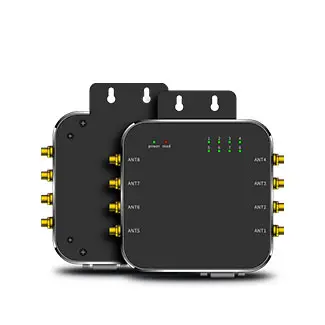

UR8 Fixed UHF RFID Reader

UR8 Fixed UHF RFID Reader

8-Channel High-Performance Fixed Reader with Gen2X Support

Chainway UR8 is a powerful 8-port fixed UHF RFID reader powered by Impinj E510 (Gen2X) with excellent heat dissipation and electromagnetic interference resilience. Designed for large, complex deployments such as warehouses, libraries, production lines, and unattended retail, the UR8 supports multiple antennas, reliable tag throughput, and flexible integration via RS-232 and RJ45 interfaces. :contentReference[oaicite:0]{index=0}

Features

  • 8 Antenna Channels (8 × SMA)
  • Impinj E510 Module (Gen2X)
  • Aluminum Alloy Chassis
  • RJ45 & RS-232 Interfaces
  • Low Power Standby / Efficient Heat Dissipation

Functions

  • Multi-Antenna UHF Tag Inventory
  • Real-Time Tag Monitoring
  • High Throughput Fixed Performance
  • Edge Gateway Integration
  • Enterprise Integration

Specifications

Physical Characteristics

Dimensions
102.8 × 102.8 × 34.2 mm
Weight
450 g (without antenna)
Material
Aluminum Alloy

Communication

Interfaces
RS-232, RJ45 (Ethernet)
GPIO
2 × Input Optical, 1 × Relay, 1 × Optical

Operating Environment

Temperature
-25 °C to +65 °C
Storage Temp
-40 °C to +85 °C
Humidity
5%-95% RH

RFID

Engine
Impinj E510
Protocol
EPC Gen2 / ISO18000-6C
Read Rate
550+ tags/s (circular pol.)
Power
1W (30-dBm, adjustable) / 2W Optional

Support & Downloads

Accessories

  • Power Adapter
  • Antenna Cables
  • Mounting Bracket
