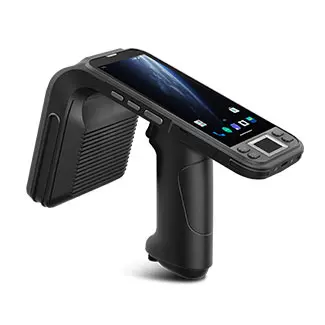

C5 Fingerprint Scanner (Android 11/13)

C5 Fingerprint Scanner (Android 11/13)

High-Security UHF RFID Handheld with Built-in Fingerprint Recognition.

The Chainway C5 integrates a high-performance UHF RFID engine (Impinj E-Series), Android 11 or 13, a capacitive fingerprint scanner, large removable pistol-style battery (6,700 / 13,400 mAh), dual PSAM slots, NFC, and optional barcode scanning. Built for secure and reliable data collection in high-security fields such as banking, public security, and asset tracking. :contentReference[oaicite:15]{index=15}

Features

  • Integrated UHF RFID (Impinj E-Series)
  • Capacitive / Optical Fingerprint Recognition
  • Dual PSAM Card Slots
  • Large Removable Battery (6,700 / 13,400 mAh)
  • Rugged IP65 / Drop-Resistant Design
  • Android 11 / 13 Platform

Functions

  • UHF RFID Tag Reading / Writing
  • Fingerprint-Based Authentication
  • Secure Transactions via PSAM
  • NFC & Barcode Scanning (Optional)
  • Dual-Camera Support (Optional)

Specifications

Physical Characteristics

Dimensions
177.0 × 80.2 × 14.8 mm
Weight
≈ 598 g (with battery)
Display
5″ (1280 × 720) fingerprint version
Battery
6,700 mAh or 13,400 mAh removable; hot-swap supported

Communication

WLAN
802.11 a/b/g/n/ac (dual-band)
Bluetooth
Bluetooth 5.0
WWAN
2G/3G/4G (optional)

RFID

Engine
CM710-1 (E710) or CM2000-1 (R2000)
Protocol
EPC Gen2 / ISO18000-6C
Frequency
865-868 / 920-928 MHz
Output Power
1-30 dBm (adjustable), 33 dBm optional

Fingerprint

Sensor
Capacitive / Optical (varies)
Security
Supports PSAM secure modules

Durability

Sealing
IP65
Drop Rating
1.5 m

Memory & OS

OS
Android 11 / 13
RAM / Storage
3 GB + 32 GB (or more, depending on version)

Support & Downloads

Accessories

  • Spare Pistol Battery
  • Charging Cradle
  • Protective Case
