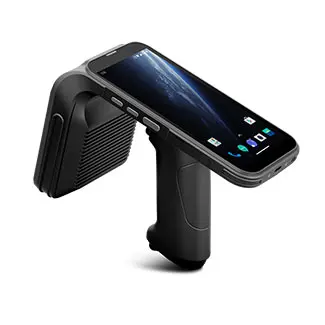

C5 UHF RFID Reader (Android 11/13)
Stronger UHF Performance, Higher Security and Reliability.
Chainway C5 is an all-in-one high-performance UHF RFID reader built on Android 11 or 13. It features an integrated Impinj E-Series-based UHF module, large removable battery (6,700 / 13,400 mAh), fingerprint recognition, 2D barcode scanning, NFC, PSAM support and a rugged IP65 design, making it ideal for logistics, security, banking and asset tracking scenarios.
Features
- Integrated Impinj E-Series UHF Module (Gen2X)
- Octa-Core 2.3 GHz CPU
- IP65 Sealing & 1.5 m Drop Proof
- Massive 6,700 / 13,400 mAh Removable Pistol Battery
- Fingerprint, NFC, Barcode Scanning, PSAM
Functions
- UHF RFID Reading (Impinj E-Series)
- 1D / 2D Barcode Scanning
- Fingerprint Recognition
- NFC Communication
- PSAM Card Support
Specifications
Physical Characteristics
Dimensions
177.0 × 80.2 × 14.8 mm
Weight
626 g (with battery)
Display
5″ or 6″ option (5″ fingerprint / 6″) / resolution varies
Power
Battery
6,700 mAh or 13,400 mAh removable pistol battery
Backup Battery
100 mAh (supports hot-swap)
Communication
WLAN
802.11 a/b/g/n/ac, dual-band
Bluetooth
Bluetooth 5.0
WWAN
2G / 3G / 4G (optional)
RFID
Chipset
Impinj E-Series (CM710-1 or R2000)
Protocol
EPC Gen2 / ISO18000-6C
Power
1 W / 30 dBm (adjustable)
Read Rate
1300+ tags/sec (circular polarization)
Range
30 m+ (depends on tags/environment)
Other Features
Fingerprint
Optional capacitive sensor
NFC
13.56 MHz / ISO14443A/B, ISO15693, NFC-IP
Support & Downloads
Accessories
- Spare Pistol Battery (6,700 mAh)
- High-Capacity Pistol Battery (13,400 mAh)
- Charging Cradle
- Protective Boot
