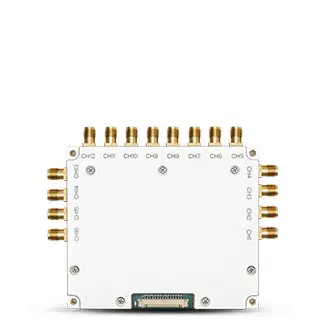

CM710-16 16-Port UHF RFID Module
High-density 16-port UHF RFID module for large fixed-reader applications.
Chainway CM710-16 is a high-density 16-port UHF RFID module designed for large-scale industrial deployments. Powered by the Impinj E710 chip, it offers excellent sensitivity, stability, and multi-antenna performance, making it suitable for conveyor belts, warehouse portals, and complex RFID gates.
Features
- 16 SMA Antenna Ports
- Impinj E710 Chip
- High Throughput (900+ tags/s)
- Multi-antenna switching
- Stable long-range reading
Functions
- Large scale multi-antenna RFID scanning
- Full warehouse / conveyor automation
- Industrial-grade tag tracking
Specifications
Physical
Dimensions
185 × 115 × 25 mm
Weight
≈ 280 g
RFID
RF Chip
Impinj E710
Protocol
EPC Gen2 / ISO18000-6C
Frequency
865–868 / 920–925 / 902–928 MHz
Output Power
5–30 dBm adjustable
Read Rate
900+ tags/s
Interface
Communication
UART / GPIO
Power
Voltage
DC 5V
Environmental
Operating Temp
-25 °C ~ 65 °C
Storage Temp
-40 °C ~ 85 °C
Support & Downloads
Accessories
- Antenna Switch Board
- Cable Kit
