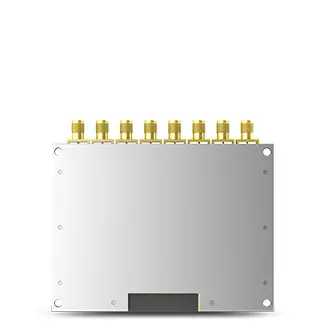

CM710-8 8-Port UHF RFID Module

CM710-8 8-Port UHF RFID Module

High-performance 8-port UHF RFID module based on the Impinj E710 chip.

Chainway CM710-8 is an 8-port UHF RFID module using the Impinj E710 reader chip. It delivers excellent read sensitivity, stable performance, and high tag throughput for fixed-mounted industrial and warehouse RFID applications. Designed for long-range and multi-antenna scenarios, it’s ideal for asset tracking, logistics, and automation.

Features

  • Impinj E710 UHF RFID Chip
  • 8 SMA Antenna Ports (50Ω)
  • High Sensitivity & Low Power
  • Adjustable Output Power (5–30 dBm)
  • Great for Fixed Readers & Gateways

Functions

  • Multi-antenna inventory scanning
  • High-speed tag reading
  • Long-range UHF communication

Specifications

Physical

Dimensions
135 × 85 × 18 mm
Weight
≈ 120 g

RFID

RF Chip
Impinj E710
Protocol
EPC Gen2 / ISO18000-6C
Frequency
865–868 / 902–928 MHz
Output Power
5–30 dBm (adjustable)
Read Rate
900+ tags/s

Interface

Communication
UART / GPIO / 3.3V TTL

Power

Operating Voltage
DC 5V ±10%

Operating Environment

Temp
-25 °C to 65 °C
Storage Temp
-40 °C to 85 °C

Support & Downloads

Accessories

  • Mounting Plate
  • Antenna Cable Set
